Myavr assembly kit lpt + lcd avr atmel microcontroller
GB Your entrance into microcontroller programming! GB

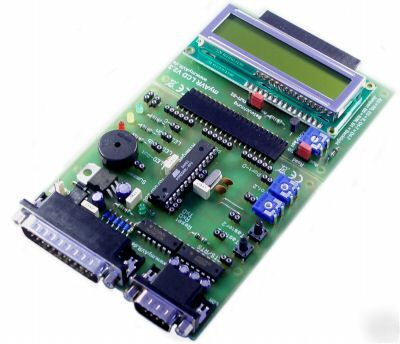

myAVR assembly kit 1 LPT PLUS with LCD
with ATMEL microcontroller ATmega8, SP 12 compatible programmer
and high-quality LCD kit - LCD with background lighting!
inclusive CD with software, info material and example programs
Attention: You have to assemble the board by yourself.
* inclusive low power microcontroller
* all necessary electronic components and printed circuit board
* minimum (fair) forwarding expenses
* with invoice and Email-support (english)
* designed after didactic principles
* and LCD-Board as assembly kit!
with contrast regulator and programmable brightness control
Our products fulfill the European Union guidelines prescribed legally for the sales and enterprise. The appropriate test reports and EMV labor protocols are available from us. The product carries the CE marking, the conformity explanation can be seen.
* printed circuit board myAVR board version 1 (unequipped, pre-drilled, tin-plated, industrial quality)
microcontroller Atmega8L 8PI
voltage regulator 6V, 7806
potentiometer 47 kOhm with shaft
Pin header 20 way, female, straight
Pin header 20 way, female, right angle
* enclosed: assembly instruction, circuit diagram, layout diagram and myAVR Resource CD
* LCD kit: board, LCD 2 lines to 16 signs with backlight, female header, plug strip, potentiometer (for contrast), resistor, transistor (brightness control over PWM), jumper
Microcontroller AVR ATmega8:
* Hi-Performance Low-Power advanced RISC-Architecture
* 8KBytes of In-System Self-Programmable Flash (Endurance: 10.000 Write/Erase Cycles)
* 512 Bytes EEPROM (Endurance: 100.000 Write/Erase Cycles)
* 6x analog-digital-transformer channels
* 23 Programmable I/O Lines
The board extends these properties at:
* serial interface (RS232)
* 2 miniature switch for digital input
* 2 potentiometer for analog input
* 3 LEDs (red, yellow, green) for digital output
* piezo electric buzzer for analog output
* interface for extension boards
* integrated ISP-Programmer over LPT
Designed after didactic principles -> especially suitably for beginners!
Software and documents on CD and still more available on the Internet:
Saxony (Germany) with Post Modern
New commodity with warranty
VAT is shown on the invoice
At delivery outside the European Union you will receive a net invoice. In this case the price is less 19% VAT plus postage. Please ask if necessary.
One month right of withdrawal
