444044 - QFP44 programmer adaptor, 44 to 44/40PIN dip
QFP44 QFP-44 IC Programming Adaptor

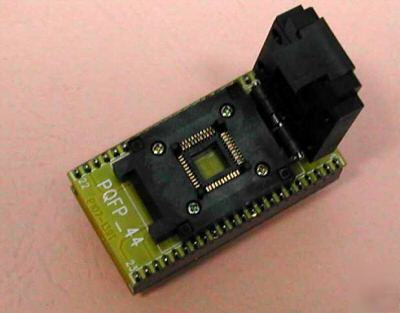

Refer the attached picture. QFP44 pins to DIP44 or DIP40 pins, dual functions by changing the lower PCB.
For QFP44 to DIP44, Pin1 - Pin1......Pin44 - Pin44.
For QFP44 to DIP40, Pin-1, 12, 34, No connection, Pin-23 to pin22 (GND).
The IC socket is FPQ-44-0.8-17, 0.8mm pitch, high quality, refer to
http:// /pdf2/qfp_clamshell_th.pdf
Information wanted when you request on me:
1. IC part no. you want to programmed.
2. No additional charge for combined or multiple items.(item Qty. <5)
3. Speed Post / EMS: takes 3-5 days to your hands. Fixed US$15 for US; US$20 for UK France Germany etc. Others place, please ask me.
