6S - 60MIN relay timer magnetic lock home security
Opto Isolated Timer Relay PCB Module
The Relay Timer has two main circuits - an adjustable On/Off delay timer and a high current mechanical relay (OMRON G2R1E - 16A@250VAC)
This relay timer module is designed with high quality components - OMRON relay, solid VR and Terminal Blocks.
Once triggered, the module will switch on for a duration set by a variable resistor (RV1).
2. Input Signal: Set, Reset button and Opto Coupled Switch
3. Output Contact: OMRON Relay model G2R1E rated 16A@250VAC
4. Timer Setting: choice of 6-12s, 12-45s, 1-2 min, 2-5 min, 6-12 min (Please specify choice of timing before delivery)
6. Connectors : 5 mm pitch terminal blocks with non removable screws
7. Dimension (W X L X H) : 38mm X 102mm X 28mm or 1.5 in X 4in X 1.1 in
8. Easily expandable to 2, 3, 4 units etc with extra connectors on both side of the PCB.
2. Magnectic Door Controller
**********************************************************************************************************
* We take great efforts in packing the item for a safe journey to its destination.
**********************************************************************************************************
* Personal checks & US postal money order are not accepted.
**********************************************************************************************************
* Refund (if accepted) must be requested within 7 days upon receipt of goods.
* Exchange only if the item is not working properly.
**********************************************************************************************************
Please contact me for more options. Quantity purchase, OEM inquiry welcome!!
************************************************************************

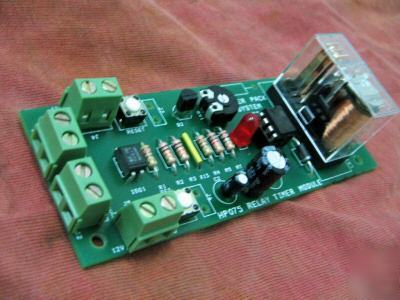

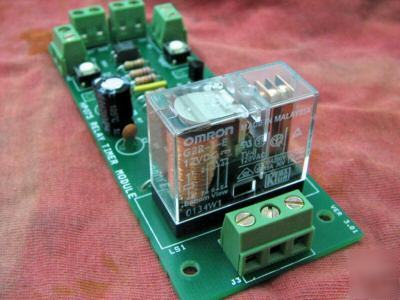

The file photos are of the actual item.
