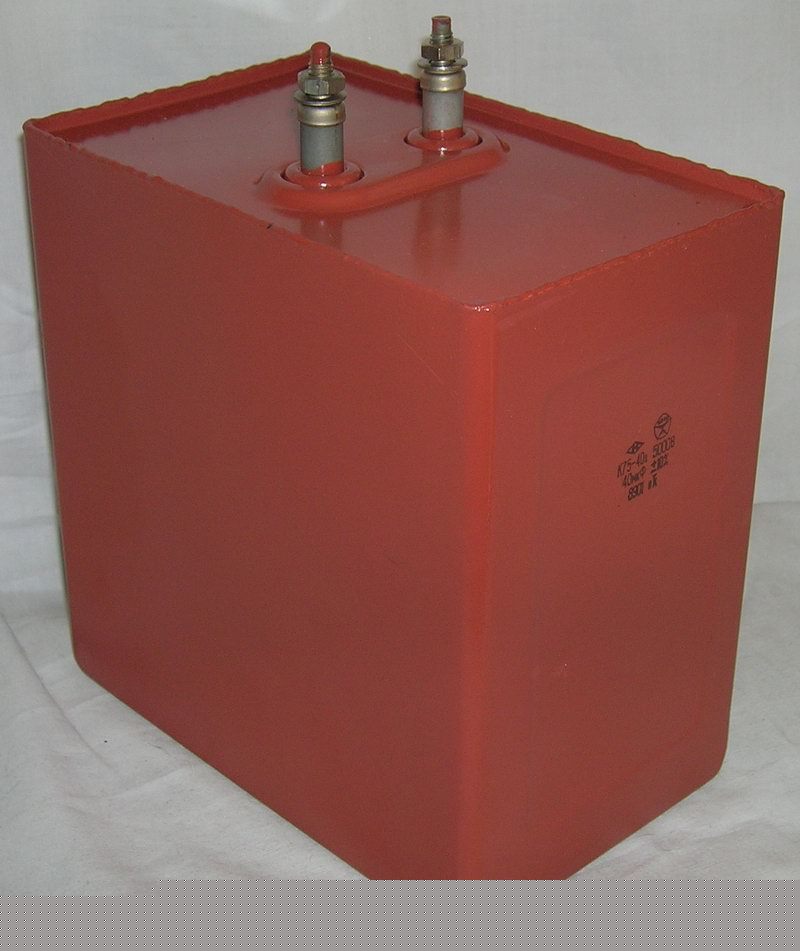

High voltage capacitor 40UF 5000V 40.0UF 5,000V 5KV hv
High-Voltage power capacitor with composite dielectric
K75-40a (Not used, in wooden box, Old stock)
5000V (5kV)/ 50uF / 10% tolerance
Dimentions - 17 x 17x 10.5 (sm) / 5 kg (10.3lb)
This product MADE for Russian Military equipment and this guarantees Top quality.
Up for sale a brand new high voltage power capacitor with composite dielectric. This K75-40A capacitor features very low inductance (ESL < 35 nH) and low ESR, therefore can be easily charged from a low power source. This capacitor is much better than PIO capacitors, never drys. Ideal to use in high voltage pulse circuits for laser, instrumental and welding machines or any other power application.
High impulse current rating up to 1,4 kA
Low self-inductance of < 40 nH
High reliability and life expectancy
Withstands heavy duty shock and vibration
Non-polar dielectric / Dry, resin fille
Vibration 1-2000Hz witch acceleration: up to 10 G
Nonsingle shocks witch acceleration: up to 40 G
Discharge current amplitude: up to 1400 A
Dissipation factor at f=50Hz: <0,008 !
Insulation resistance: >15000 MOhm
Single shocks witch acceleration: up to 500 G
Temperature range: -60...+70°C (-76...158°F)
Atmospheric pressure of work: 0,00012 to 294 000,0 Pa
Material of electrodes:Composite of metals witch a special film coats
Electrode insulator: Polyethylene-tereftalate
