Pulizzi z-line PC2773 120V rack power distribution pdu

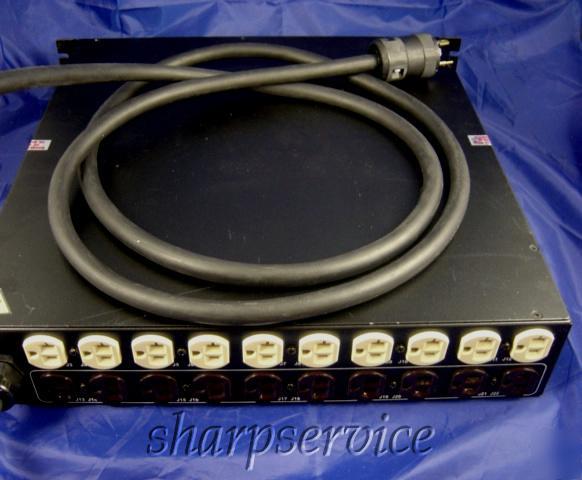

Pulizzi Z-LINE PC2773 120V Rack Power Distribution PDU
* TWO OUTLETS ON FRONT PANEL (J1, J2)
* TEN OUTLETS ON BACK PANEL (J3-J12)
* TEN OUTLETS ON BACK PANEL (J13-J22)-BROWN
* MAXIMUM OUTPUT: 24 AMPS, 16 AMPS J1-J12, 16 AMPS J13-J22
* 1-POLE, 20 AMP LISTED BRANCH CIRCUIT. CB 1 CONTROLS J1-J12, CB2 CONTROLS J13-J22
* BLUE LED, ILLUMINATE WHEN BREAKER IS ON
SPIKE/SURGE SUPPRESSION: LINE TO NEUTRAL
2U (Rack Units) (3.44 inches) [About U Height]
Flush - 19 inches wide - Standard Rack Mount
NEMA L5-30P (Male Plug) Information:\n- North American\n- Twist Lock\n- Single Phase (1P+N+G)\n- 110-125 VAC, 30A Max (24A Nominal)\n- Mates with L5-30R outlets
20A Max (16A Nominal)\n- Accommodates 6-15 Plugs and 6-20 Plugs^NEMA L5-15R (Female Outlet) Information:\n- North American\n- Twist Lock\n- Single Phase (1P+N+G)\n- 110-125 VAC
16GA EG Steel powder coat black. Front flush panel has (2) 5-20R outlets, blue LED, 2P/20A listed breaker. Rear: (20) 5-20R outlets, strain relief and power cable/plug assembly. No filter or MOVS.
UL File No E94081-A4-UL-1, Vol. X2
Power Distribution Units (PDU) and Accessories
Need more specs and info? Click here:
http:// /Products/Model_Details.html?Model=PC2773
