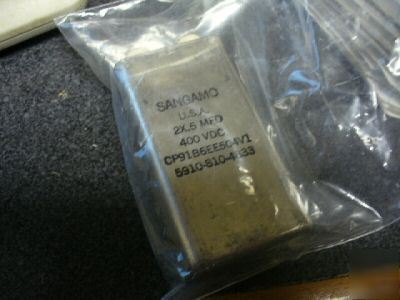

Capacitor,fixed,paper dielectric
CAPACITANCE VALUE PER SECTION - 0.500 MICROFARADS ALL SECTIONS
TOLERANCE RANGE PER SECTION - -10.00 TO 20.00 PERCENT 1ST SECTION, -10.00 TO 20.00 PERCENT 2ND SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION - 400.0 DC ALL SECTIONS
NONDERATED OPERATING TEMP - -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM
BODY STYLE - 14A W/O MTG FACILITIES, TERMINAL(S) ON ONE SURFACE
BODY LENGTH - 1.312 INCHES NOMINAL
BODY WIDTH - 0.625 INCHES NOMINAL
BODY HEIGHT - 2.500 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR - 2C ELECTRODE(S) GROUNDED TO CASE
TERMINAL TYPE AND QUANTITY - 2 TAB, SOLDER LUG
INSULATION RESISTANCE AT REFERENCE TEMP - 2000.0 MEGOHM-MICROFARADS
DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT - 1.000
RELIABILITY INDICATOR - NOT ESTABLISHED
FEATURES PROVIDED - HERMETICALLY SEALED CASE
TEST DATA DOCUMENT - 81349-MIL-C-25 SPECIFICATION
III TERMINAL SURFACE TREATMENT - SOLDER
(NON-CORE DATA) OVERALL LENGTH - 1.312 INCHES NOMINAL
III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP - 20.0 MEGOHM-MICROFARADS
(NON-CORE DATA) OVERALL HEIGHT - 3.281 INCHES MAXIMUM
(NON-CORE DATA) OVERALL WIDTH - 0.625 INCHES NOMINAL
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - CP91B6EE504V1
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC25
