Leeds northrup 8693 portable temperature potentiometer
Leeds & Northrup 8693 Portable Temperature Potentiometer (061307703160)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

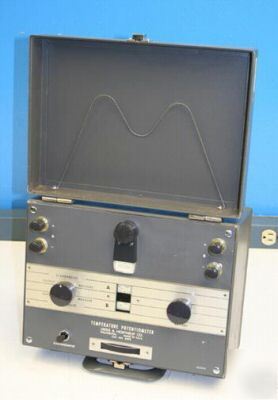

Leeds & Northrup 8693 Portable Temperature Potentiometer
* Copy of Manual Included: Yes
* Current Retail Price: $150.00
* The 8693 Temperature Potentiometer is a portable, battery operated, double-range potentiometer designed for general plant and laboratory use. The instrument ranges are supplied according to the user’s specifications, and include either two temperature ranges reading directly in degrees, one temperature and one mv range, or two mv ranges. Automatic reference-junction compensation is included with all temperature ranges. The instrument is designed for use with thermocouples or other EMF sources. It can also serve as a source of calibrated voltage for checking other potentiometer-type instruments.
* Limit of Error: +/-0.2% of range span for all standard ranges when external resistance does not exceed 50 ohms.
* Galvanometer Sensitivity: 1.0 microampere per scale division (equivalent to 45 microvolts per scale division for total circuit resistance of Rc + CDRX)
* Galvanometer Resistance (Rc): 10 ohms
* Galvanometer External Critical Damping Resistance (CDRX): 35 ohms
* Battery: 1.5 Volts (Not Included)
