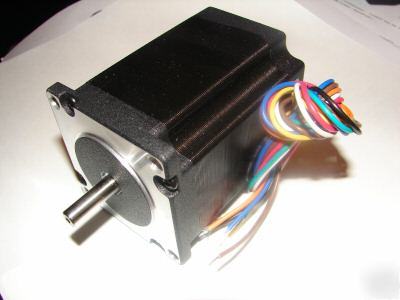

Stepper motor 282 oz-in 8 wire bipolar or unipolar
Brand New NEMA 23 282 oz-in stepper motor Includes documentation
Bipolar series Volts=3.864, Amps=2.1, Ohms=1.84, Holding torque=2.0 Nm.
Bipolar parallel Volts=1.93, Amps=4.2, Ohms=.42, Holding torque= 2.0 Nm.
Unipolar Volts=2.76, Amps=3.0, Ohms=0.92, Holding torque= 1.4 Nm
Dual shafts, Main = 1/4" x 20 mm, Back shaft= 1/4" x 15 mm
