B+ power supply kit for tube amp with pcb and parts
Because of high voltage, this PCB KIT can cause serious damage to your health.
We are not responsible for this for any reason.
- Because of no discharge resister, high voltage can be dangerous even if you disconnect AC input
- Capacitor input circuit with current limiting resistor

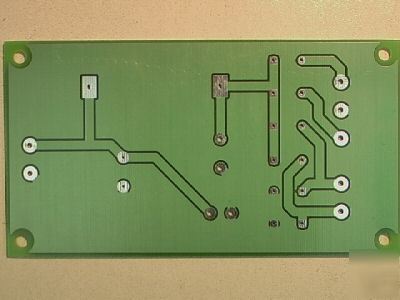

- Full wave and bridge rectification compatible : This PCB can support both rectification according to your Transfromer. So, If you have CT based power transformer, 3-PIN input connector, 2 ultra fast diodes and 2-PIN output connector with 3 capacitors / 1 resistor are required(As shown in picture).
- And if you have non CT power transformer, 2-PIN input connector, 4 ultra fast diodes and 2-PIN output connector with 3 capacitors / 1 resistor are required(Not shown in picture).
- Recommended parts for low ~ mid power amplifier : 3-PIN/2-PIN connectors(for full wave) or 2 2-PIN connectors(for bridge), 2 or 4 ultra fast recovery diodes(UF4007), 68uF 450V, 330uF 450V, 0.01uF 630V, 10 Watt 30~50 ohm.
- To minimize transient current, input capacitors are set to 68uF and 330uF with current liminting resistor.
- Choke can be used instead of high wattage resistor
- Tested result : 278V AC input -> Output voltage is 293V DC @ no load, In actual use, output voltage will drop tens of volts according to your amplifier.
- Current is depend on your transformer and output power
- Included : PCB, Circuit diagram, Assembly manual, 68uF 450V and 330uF 450V Capacitors(Samyoung), 0.01uF 630V capacitor, 10W 27ohm resister, 4 PCB support with bolt/nut (item # 230219685499), UF 4007 and INPUT OUTPUT connectors are decided according to your transformer, Please let us know your rectification method before you pay),
