Adept i & ii robot ** manipulator ** engineering manual
1- ADEPTONE MANIPULATOR: SKELETON, ADEPTONE SCARA , FINAL ASSEMBLY
2- ADEPTTWO MANIPULATOR: UNWIRED, BASE ASSEMBLY
3- REMOTE SIGNATURE CARD: ASSEMBLY AND SCHEMATICS
4- OUTER LINK CARD: ASSEMBLY AND SCHEMATICS
5- CABLES: PIN OUT ARM AND POWER SIGNAL CABLES, JOINT 2 ENCODER, HARNEST WRIST MOTORS ETC....
6- JOINT 3: OUTER LINK AND WRIST ASSEMBLY
7- JOINT4: MOTOR AND ROTOR ASSEMBLY, MOTOR JOINT 4 WIRED ETC...
8- JOINT 5: SCHEMATIC QUILL BOARD, HARNESS JOINT 5 ELECTRICAL, ETC...
9- ENCODERS AND SENSORS: ASSEMBLY OPTO-SWITCH, BODY ENCODER ETC...
10- PNEUMATICS: PRESSURE SENSOR, BRAKE SHOE, ELECTRICAL BOX ETC...

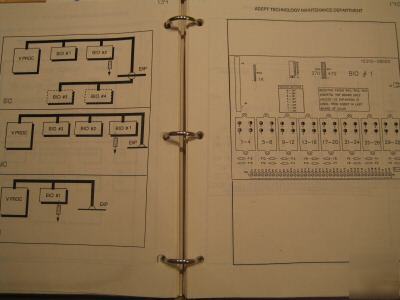

All drawings and pages are in good condition, the pictures below are from THIS AND OTHER MANUALS I AM SELLING.
If you have any questions, other than technical (because I know nothing in this field!) pls e-mail
WE ALSO HAVE THE ENG. MANUAL OF THE CONTROLLER
CHECK OUT THE TRAINING AND MAINTENANCE MANUAL.. VERY INTERESTING
