Automation direct 5-slot expansion base D3-05B-1


Automation Direct D3-05B-1 FIVE SLOT BASE LOCAL/EXP 110/220 VAC P/S
Expansion Base: CPU Base plus 4 Expansion Bases
Input Voltage: 85-264VAC; 47-63Hz
Base Power Consumption: 85VA Max
Dielectric Strength: 1500VAC for one minute between terminals of AC Power Supply, run output, common, 24VDC
Insulation Resistance: >10Mohm at 500VDC
Power Supply Output: (5VDC) 4.75-5.25V, 5% ripple; (9VDC) 8.5-10V, 5% ripple; (24VDC) 20-28V, % ripple
Auxiliary 24VDC Output: 100mA max
Run Relay: 250VAC, 4A (resistive load)
Fuses: 2A (250V) Non-replaceable
Dimensions W/H/D: 11.42” (290mm) X 4.85” (123mm) X 4.41” (112mm)

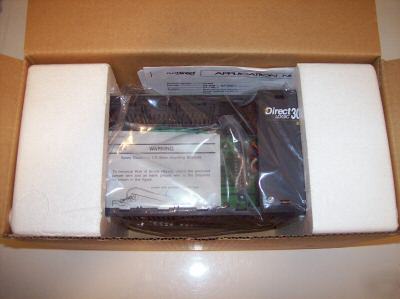

Item is Brand New in Factory Packaging.
