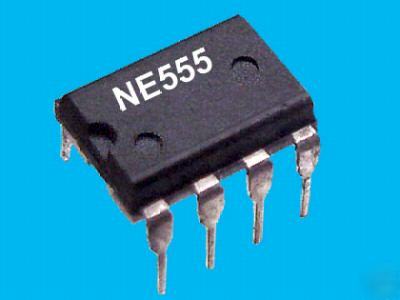

NE555 555 timers - the most popular ic on earth
The NE555 / LM-555 is the world's most popular timer IC. It's probably the most popular IC of all. Compact, simple circuit design. Tons and tons of resource literature. Check the EXCELLENT AN170 and other links below, or Google search for literally thousands of application sites with circuits galore.
* Timing from Microseconds to HOURS
* Precision Pulse Generation / Timing
* Use a single 4½ to 16 VDC supply
* Excellent temperature stability 0.005% / °C
* Monostable or Astable Operation
* Countless Application and Information Sources
Note: Depending on the manufacturer, IC's may be marked either with the equivalent 'NE' or 'LM' prefixes.
Application Note AN170: NE555 AN170 (356K PDF)
Here are just a few circuit application links to spur your imagination.
http://www.doctronics.co.uk/555.htm
http://home.cogeco.ca/~rpaisley4/LM555.html
http:// /T/timers.htm
http:// /555-circuits.htm
http:// /PDFs/column008.pdf
http:// /PDFs/column009.pdf
Be sure to add us to your Favorites List !
14 day Non-DOA, Good-on-Arrival Guarantee
Untested, but NO JUNK or suspect parts
PCB parts are thru-hole, NO SMD/SMT
Manufacturers may vary from picture
