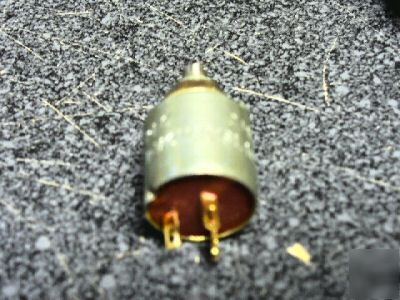

Resistor,fixed,wire wound,noninductive
ELECTRICAL RESISTANCE - 460.700 OHMS
RESISTANCE TOLERANCE IN PERCENT - -0.100 TO 0.100
POWER DISSIPATION RATING IN WATTS - 0.125 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 125.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 145.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -10.0 TO 10.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -65.0 TO 145.0
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 14 AXIAL TERMINAL EACH END
BODY DIAMETER - 0.250 INCHES NOMINAL
BODY LENGTH - 0.344 INCHES NOMINAL
RELIABILITY INDICATOR - ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.010
TEST DATA DOCUMENT - 81349-MIL-R-39005 SPECIFICATION
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR39005-5
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RBR56L460R7BR
