30 / RGP30G / gi switching rectifier
Now over 1,400 items in our Store!
Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Glass passivated cavity-free junction
Capable of meeting environmental standards of MIL-S-19500
High temperature metallurgically bonded construction
3.0 Ampere operation at TA=55°C with no thermal runaway
Fast switching for high efficiency
High temperature soldering guaranteed 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension

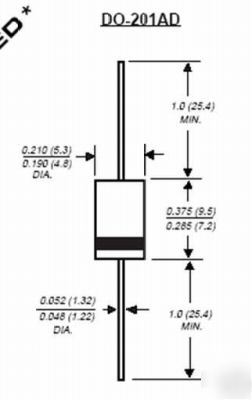

JEDEC DO-201AD molded plastic over glass body
Plated axial leads, solderable per MIL-STD-750, Method 2026
Color band denotes cathode end
