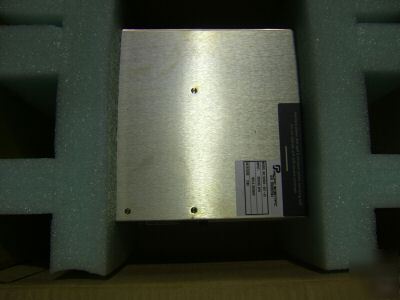

New pacific scientific brushless servo drive sc 900
PART OF THE SC900 FAMILY HARDWARE!
Powerful, Functional, Modular Connectivity
A modular design increases functionality and the open architecture ensures that your investment can be upgraded as additional functional enhancements become available. The foundation for this series is a base drive which, in itself, has an impressive list of features and functions. For example, a variety of analog and digital command interfaces are available. The base drive accepts various option cards that provide increased application-specific functionality. Option cards provide three separate functions: a RS232/485 serial interface, a SERCOS multi-axis fiber optic interface and a programmable single axis controller. Connectivity through option cards provides the foundation for future upgrade paths. Three option cards are available.
An autotuning feature automatically sets the servo system set-up parameters to the type of performance desired. Use just a personal computer to set-up your system, no scopes, meters or other instruments are required.
Digital Resolver-to-Digital Conversion (DRDC)
Up to 5 arc minutes position accuracy
Smoother low speed operation without sacrificing high speed performance
From 7.5A to 60A peak, 3.75A to 30A continuous
Automatically loads motor characteristics
Allows set-up to desired performance
High frequency minimizes audible noise
Drive status, diagnostics and fault codes
* Standard Analog and Digital Interface
* +/- 10V analog interface
* step-direction digital interface
* step up/step down interface
* quadrature encoder interface
* six mappable digital bi-directional I/O
* quadrature encoder output
* Electronic Gearing with User-Defined Ratios
* Multiple Adjustable Speed Presets
* User-Defined Acceleration Rate
* User-Defined Start/Stop Commands
* Full Line of Option Cards to Expand Functionality and Extend Product Life
NOTE: Base Servo drive includes Information Sheet. Manual and accessories ordered separately or included by using the Accessories Option designator.
OC930 Serial Interface Option Card
* RS-232/485 serial interface
* Access drive from a PC during set-up
* Facilitates all-digital set-up of current, velocity and position loops
* Serves as a vehicle for field firmware upgrades
* Data can be stored on option card or in drive
OC930 Hardware and Software Reference Manual.
OC940 SERCOS Interface Option Card
* SERCOS Interface - the only open architecture network specifically designed for motion control, synchronous multi-axis protocol
* Fiber optic connection - speeds and simplifies connections, eliminates complex wiring, immune to external electrical noise, cable lengths up to 100 m between drive and controller possible
* Eight optically-isolated inputs
* Eight optically-isolated outputs
* Torque, velocity and position servo loops are closed locally at the drive
OC940 Hardware and Software Reference Manual.
OC950 Programmable Single Axis Position Control Option Card
* New Windows(R) development environment - powerful interactive diagnostics
* ServoBASIC Plus(TM) programming software - eight software-configurable limit switches, full math capabilities, high speed interrupt driven software, cam profiling, popular PLC and HMI protocols available
* Twenty-one programmable and configurable I/O - connects with Opto 22
* Optional PacLAN(TM) local area network - connect up to 255 drives, 2.5 Mbaud ArcNet compatible
* 32 kBytes NV memory, 128k optional program storage memory
OC950 Hardware Installation and Reference Manual.
