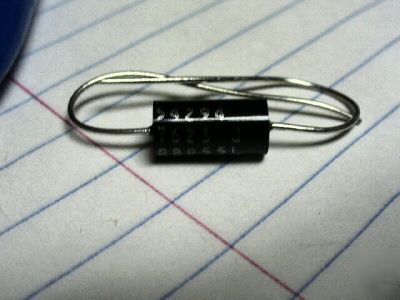

Resistor,fixed,wire wound,noninductive
ELECTRICAL RESISTANCE - 129.400 KILOHMS
RESISTANCE TOLERANCE IN PERCENT - -0.100 TO 0.100
POWER DISSIPATION RATING IN WATTS - 0.150 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 125.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 145.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -10.0 TO 10.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -65.0 TO 145.0
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 14 AXIAL TERMINAL EACH END
BODY DIAMETER - 0.250 INCHES NOMINAL
BODY LENGTH - 0.500 INCHES NOMINAL
RELIABILITY INDICATOR - ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.010
TERMINAL LENGTH - 1.500 INCHES MINIMUM
TEST DATA DOCUMENT - 81349-MILR39005 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-39005/4 GOVERNMENT SPECIFICATION
III UNPACKAGED UNIT WEIGHT - 2.000 GRAMS
(NON-CORE DATA) CUBIC MEASURE - 0.025 CUBIC INCHES
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-39005/4
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RBR55L12942BR
