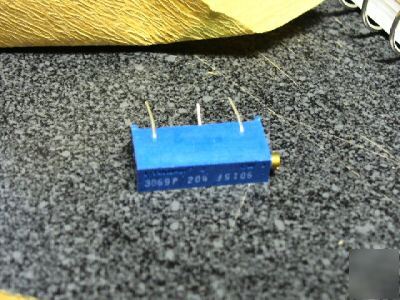

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 200.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -20.0 TO 20.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STARTING TORQUE - 8.00 INCH-OUNCES
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.2 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 25.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 85.0 SINGLE SECTION
BODY STYLE - 26B RECTANGULAR W/MOUNTING HOLES/SLOTS
BODY LENGTH - 1.000 INCHES NOMINAL
BODY WIDTH - 0.290 INCHES NOMINAL
BODY HEIGHT - 0.310 INCHES NOMINAL
LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS - 0.830 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.100 INCHES NOMINAL
SHAFT LENGTH - 0.060 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 5400.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - CLUTCH
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 5400.0 NOMINAL
MOUNTING METHOD - TERMINAL AND UNTHREADED HOLE
MOUNTING FACILITY QUANTITY - 2
MOUNTING HOLE DIAMETER - 0.088 INCHES NOMINAL
FEATURES PROVIDED - NONMETALLIC SHAFT
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.500 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.200 INCHES NOMINAL
TERMINAL LENGTH - 0.250 INCHES NOMINAL
TERMINAL LOCATION - LOWER ADJACENT SIDE SINGLE ROW
CENTER TO CENTER DISTANCE BETWEEN TERMINAL ROWS - 0.200 INCHES NOMINAL
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 1.060 INCHES NOMINAL
III OVERALL HEIGHT - 0.560 INCHES NOMINAL
III OVERALL WIDTH - 0.290 INCHES NOMINAL
