Stk compatible atmel avr programmer - avr, tiny, mega

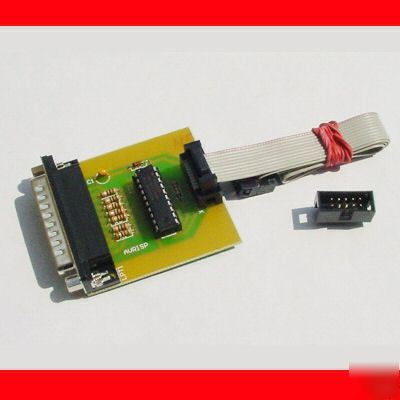

STK compatible ATMEL AVR programmer
Perfect choice for beginners, who are just entering the world of microcontrollers.
ISP programming is a fast and reliable way of programming the AVR micro controllers
in place in there final applications.
Making this device usefully in many applications from initial programming to updating the micro controller
once installed in the final device.
This programmer works with the following software:
It connects to the Parallel port, and can be used to program any Atmel AVR while it is still in the system, provided the system provides a standard In System Programming (ISP) connector. The PC interface is through the Parallel port, and makes use of the same pinout as the STKxxx programmer.
REMARK : If your target board have pulse power supply, it would be smart to connect GND of your computer, GND of your programmer and GND of your target board together.
The connections require to use an ISP programmer are that the target device must be power and have a oscillator,
as the programmer has to communicate with the target device under standard
operating conditions rather than a specific programming mode.
Wire connections must be made from the ISP to the target device
for the pins SCK MOSI MOSO RST GND and VCC.
Exemplary scheme with ISP connector and pinouts for ATmega16 :
Necessary parts to build Prototype Board for Atmel AVR
We want you to be satisfied with your purchases, so please e-mail us with any questions you might have.
Postage is fixed at GBP 3.00 per order,
Item will be sent out in the order of
Please allow about 10-12 days for delivery
about 12-15 days for delivery to
